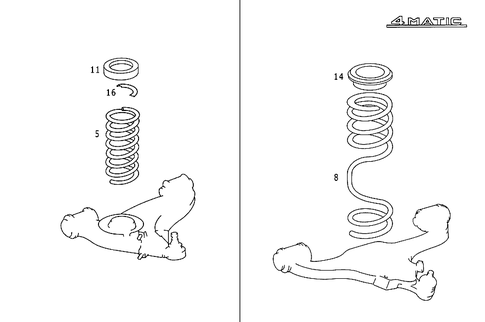

Springs and Suspension, Front for 1988 Mercedes-Benz 300E
No.
Part # / Description / Price
Price
5
Front Axle Spring
Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
Description: As required.
MSRP $180.00
$139.32
MSRP $180.00
$139.32
5
Front Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
124.020 24 580,581 AIR CONDITIONER 7
124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5
124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4
124.026 40 228 ADDITIONAL HEATER 4
124.030 41 412,414 SLIDING ROOF 3
124.031 50 450 TAXI 3
124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2
124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2
124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2
124.130 45 428 5-SPEED TRANSMISSION 1
124.133 56 291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
750-759 RADIO 1
COUNTRY CODE:623,624,626,628 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
CODE 482
-26 124 321 19 04 201 321 10 84 201 321 11 84
27-31 124 321 19 04 201 321 11 84 201 321 12 84
.
32-36 124 321 20 04 201 321 09 84 201 321 10 84
37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84
42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84
.
47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84
53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84
58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84
.
63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84
70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84
76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84
.
81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84
69-74 124 321 23 04 201 321 10 84 201 321 11 84
75- 124 321 23 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953
==============================================================================================================================
TOTAL OF POINTS FRONT SPRING PAD PAD
FRONT SPRING BLUE FRONT SPRING RED
-26 124 321 27 04 201 321 11 84 201 321 12 84
.
27-33 124 321 28 04 201 321 09 84 201 321 10 84
34-39 124 321 28 04 201 321 10 84 201 321 11 84
40-45 124 321 28 04 201 321 11 84 201 321 12 84
.
46-52 124 321 29 04 201 321 09 84 201 321 10 84
53-59 124 321 29 04 201 321 10 84 201 321 11 84
60-66 124 321 29 04 201 321 11 84 201 321 12 84
.
67-73 124 321 30 04 201 321 09 84 201 321 10 84
74-81 124 321 30 04 201 321 10 84 201 321 11 84
82- 124 321 30 04 201 321 11 84 201 321 12 84
==============================================================================================================================
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
124.020 24 580,581 AIR CONDITIONER 7
124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5
124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4
124.026 40 228 ADDITIONAL HEATER 4
124.030 41 412,414 SLIDING ROOF 3
124.031 50 450 TAXI 3
124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2
124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2
124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2
124.130 45 428 5-SPEED TRANSMISSION 1
124.133 56 291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
750-759 RADIO 1
COUNTRY CODE:623,624,626,628 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
CODE 482
-26 124 321 19 04 201 321 10 84 201 321 11 84
27-31 124 321 19 04 201 321 11 84 201 321 12 84
.
32-36 124 321 20 04 201 321 09 84 201 321 10 84
37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84
42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84
.
47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84
53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84
58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84
.
63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84
70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84
76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84
.
81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84
69-74 124 321 23 04 201 321 10 84 201 321 11 84
75- 124 321 23 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953
==============================================================================================================================
TOTAL OF POINTS FRONT SPRING PAD PAD
FRONT SPRING BLUE FRONT SPRING RED
-26 124 321 27 04 201 321 11 84 201 321 12 84
.
27-33 124 321 28 04 201 321 09 84 201 321 10 84
34-39 124 321 28 04 201 321 10 84 201 321 11 84
40-45 124 321 28 04 201 321 11 84 201 321 12 84
.
46-52 124 321 29 04 201 321 09 84 201 321 10 84
53-59 124 321 29 04 201 321 10 84 201 321 11 84
60-66 124 321 29 04 201 321 11 84 201 321 12 84
.
67-73 124 321 30 04 201 321 09 84 201 321 10 84
74-81 124 321 30 04 201 321 10 84 201 321 11 84
82- 124 321 30 04 201 321 11 84 201 321 12 84
==============================================================================================================================
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
Description: As required.
MSRP $137.00
$105.78
MSRP $137.00
$105.78
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
124.020 24 580,581 AIR CONDITIONER 7
124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5
124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4
124.026 40 228 ADDITIONAL HEATER 4
124.030 41 412,414 SLIDING ROOF 3
124.031 50 450 TAXI 3
124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2
124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2
124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2
124.130 45 428 5-SPEED TRANSMISSION 1
124.133 56 291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
750-759 RADIO 1
COUNTRY CODE:623,624,626,628 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
CODE 482
-26 124 321 19 04 201 321 10 84 201 321 11 84
27-31 124 321 19 04 201 321 11 84 201 321 12 84
.
32-36 124 321 20 04 201 321 09 84 201 321 10 84
37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84
42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84
.
47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84
53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84
58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84
.
63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84
70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84
76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84
.
81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84
69-74 124 321 23 04 201 321 10 84 201 321 11 84
75- 124 321 23 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953
==============================================================================================================================
TOTAL OF POINTS FRONT SPRING PAD PAD
FRONT SPRING BLUE FRONT SPRING RED
-26 124 321 27 04 201 321 11 84 201 321 12 84
.
27-33 124 321 28 04 201 321 09 84 201 321 10 84
34-39 124 321 28 04 201 321 10 84 201 321 11 84
40-45 124 321 28 04 201 321 11 84 201 321 12 84
.
46-52 124 321 29 04 201 321 09 84 201 321 10 84
53-59 124 321 29 04 201 321 10 84 201 321 11 84
60-66 124 321 29 04 201 321 11 84 201 321 12 84
.
67-73 124 321 30 04 201 321 09 84 201 321 10 84
74-81 124 321 30 04 201 321 10 84 201 321 11 84
82- 124 321 30 04 201 321 11 84 201 321 12 84
==============================================================================================================================
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
124.020 24 580,581 AIR CONDITIONER 7
124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5
124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4
124.026 40 228 ADDITIONAL HEATER 4
124.030 41 412,414 SLIDING ROOF 3
124.031 50 450 TAXI 3
124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2
124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2
124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2
124.130 45 428 5-SPEED TRANSMISSION 1
124.133 56 291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
750-759 RADIO 1
COUNTRY CODE:623,624,626,628 1
.
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF POINTS FRONT SPRING BOOT BOOT:
NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
CODE 482
-26 124 321 19 04 201 321 10 84 201 321 11 84
27-31 124 321 19 04 201 321 11 84 201 321 12 84
.
32-36 124 321 20 04 201 321 09 84 201 321 10 84
37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84
42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84
.
47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84
53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84
58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84
.
63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84
70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84
76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84
.
81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84
69-74 124 321 23 04 201 321 10 84 201 321 11 84
75- 124 321 23 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953
==============================================================================================================================
TOTAL OF POINTS FRONT SPRING PAD PAD
FRONT SPRING BLUE FRONT SPRING RED
-26 124 321 27 04 201 321 11 84 201 321 12 84
.
27-33 124 321 28 04 201 321 09 84 201 321 10 84
34-39 124 321 28 04 201 321 10 84 201 321 11 84
40-45 124 321 28 04 201 321 11 84 201 321 12 84
.
46-52 124 321 29 04 201 321 09 84 201 321 10 84
53-59 124 321 29 04 201 321 10 84 201 321 11 84
60-66 124 321 29 04 201 321 11 84 201 321 12 84
.
67-73 124 321 30 04 201 321 09 84 201 321 10 84
74-81 124 321 30 04 201 321 10 84 201 321 11 84
82- 124 321 30 04 201 321 11 84 201 321 12 84
==============================================================================================================================
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 24 580,581 AIR CONDITIONER 7 124.021 23 420,425 AUTOMATIC TRANSMISSION,DIESEL ENGINE 5 124.023 26 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.026 40 228 ADDITIONAL HEATER 4 124.030 41 412,414 SLIDING ROOF 3 124.031 50 450 TAXI 3 124.120 24 934 TAXI DISTRESS ALARM SYSTEM 2 124.125 35 480,211 SELF-LEVELLING DEVICE/ASD 2 124.128 44 221,222 ELECTICALLY ADJUSTED FRONT SAET 2 124.130 45 428 5-SPEED TRANSMISSION 1 124.133 56 291 AIR BAG 1 481 UNDERSHIELD (STEEL PLATE) 1 600 HEADLAMP WIPER/WASHER 1 750-759 RADIO 1 COUNTRY CODE:623,624,626,628 1 . ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== SUM OF POINTS FRONT SPRING BOOT BOOT: NORMAL SPRINGS FIRM-RIDE SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING CODE 482 -26 124 321 19 04 201 321 10 84 201 321 11 84 27-31 124 321 19 04 201 321 11 84 201 321 12 84 . 32-36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 -26 124 321 20 04 201 321 10 84 201 321 11 84 42-46 27-31 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 32-35 124 321 21 04 201 321 09 84 201 321 10 84 53-57 36-40 124 321 21 04 201 321 10 84 201 321 11 84 58-62 41-45 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 46-51 124 321 22 04 201 321 09 84 201 321 10 84 70-75 52-57 124 321 22 04 201 321 10 84 201 321 11 84 76-80 58-62 124 321 22 04 201 321 11 84 201 321 12 84 . 81- 63-68 124 321 23 04 201 321 09 84 201 321 10 84 69-74 124 321 23 04 201 321 10 84 201 321 11 84 75- 124 321 23 04 201 321 11 84 201 321 12 84 . ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -26 124 321 27 04 201 321 11 84 201 321 12 84 . 27-33 124 321 28 04 201 321 09 84 201 321 10 84 34-39 124 321 28 04 201 321 10 84 201 321 11 84 40-45 124 321 28 04 201 321 11 84 201 321 12 84 . 46-52 124 321 29 04 201 321 09 84 201 321 10 84 53-59 124 321 29 04 201 321 10 84 201 321 11 84 60-66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 124.020 MBSA 32 580,581 AIR CONDITIONER 7 124.021 MBSA 31 420,425 AUTOMATIC TRANSMISSION,GASOLINE ENGINE 4 124.023 MBSA 34 412,414 SLIDING ROOF 3 124.026 MBSA 50 480 SELF-LEVELLING DEVICE 2 124.030 MBSA 51 481 UNDERSHIELD (STEEL PLATE) 2 750-759 RADIO 1 ============================================================================================================================== TABLE FRONT SPRING - RUBBER BOOT ============================================================================================================================== TOTAL OF POINTS FRONT SPRING BOOT BOOT: NORMAL SUSPENSION WITH BLUE FRONT SPRING W/ RED FRONT SPRING -36 124 321 20 04 201 321 09 84 201 321 10 84 37-41 124 321 20 04 201 321 10 84 201 321 11 84 42-46 124 321 20 04 201 321 11 84 201 321 12 84 . 47-52 124 321 21 04 201 321 09 84 201 321 10 84 53-57 124 321 21 04 201 321 10 84 201 321 11 84 58-62 124 321 21 04 201 321 11 84 201 321 12 84 . 63-69 124 321 22 04 201 321 09 84 201 321 10 84 70-75 124 321 22 04 201 321 10 84 201 321 11 84 76- 124 321 22 04 201 321 11 84 201 321 12 84 ============================================================================================================================== CHART OF FRONT SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/653/952/953 ============================================================================================================================== TOTAL OF POINTS FRONT SPRING PAD PAD FRONT SPRING BLUE FRONT SPRING RED -66 124 321 29 04 201 321 11 84 201 321 12 84 . 67-73 124 321 30 04 201 321 09 84 201 321 10 84 74-81 124 321 30 04 201 321 10 84 201 321 11 84 82- 124 321 30 04 201 321 11 84 201 321 12 84 ==============================================================================================================================
Description: As required.
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 ( 8 mm). With spring color code in blue 1 (8 mm).
MSRP $8.50
$7.25
MSRP $8.50
$7.25
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 4 (23 mm). Number of burls: 4 (32 mm).
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 2 (13 mm). With spring color code in red 2 (13 mm).
MSRP $9.75
$8.41
MSRP $9.75
$8.41
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (18 mm).
MSRP $10.00
$8.70
MSRP $10.00
$8.70
17
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
ONLY USED WITH H.D. SPRINGS
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
ONLY USED WITH H.D. SPRINGS
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
USED WITHOUT H.D. SPRINGS
USED WITHOUT H.D. SPRINGS
Description: Stop buffer.
MSRP $16.50
$14.07
MSRP $16.50
$14.07
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
USED WITHOUT H.D. SPRINGS
USED WITHOUT H.D. SPRINGS
Description: Stop buffer.
MSRP $17.50
$15.23
MSRP $17.50
$15.23
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Stop buffer to 201 323 36 30,....41 30,....31 30. Stop buffer to 201 320 36 30,....41 30,....31 30. To 124 320 60 30, 124 320 64 30.
MSRP $15.50
$13.34
MSRP $15.50
$13.34
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
Description: Stop buffer to 124 320 42 30,124 320 36 30,..56 30. Stop buffer t0 124 320 36 30,124 320 42 30,..56 30.
MSRP $17.50
$15.23
MSRP $17.50
$15.23
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH H.D. SPRINGS
Description: Stop buffer to 124 320 07 30,124 320 01 30. Stop buffer to 201 320 14 30,201 320 20 30. Stop buffer to 201 320 16 30,to 201 320 22 30. Stop buffer to 124 320 13 30,....22 30,58 30,59 30. Stop buffer to 124 320 13 30,....58 30,17 30,44 30. Stop buffer to 124 320 08 30,....41 30,55 30.
MSRP $23.50
$20.30
MSRP $23.50
$20.30
29
MSRP $1.40
$1.16
32
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to steering knuckle,bottom. Damper strut to steering knuckle, bottom m12x1,5x 16. Shock absorber to steering knuckle, bottom.
MSRP $4.90
$4.21
MSRP $4.90
$4.21
35
Window Mercedes-Benz
Mercedes-Benz Description: Damper strut to steering knuckle, bottom. Hydropneumatic spring leg to steering knuckle,bottom. Shock absorber to steering knuckle, bottom. Damper strut to steering knuckle,top.
MSRP $2.40
$2.03
MSRP $2.40
$2.03
47
Screw Mercedes-Benz
Mercedes-Benz Description: Shock absorber to steering knuckle,top. Damper strut to steering knuckle,top m 12x40.
59
Nut Mercedes-Benz
Mercedes-Benz Description: Damper strut to steering knuckle,top m 12. Hydropneumatic spring leg to steering knuckle,top. Shock absorber to steering knuckle,top.
MSRP $6.00
$5.08
MSRP $6.00
$5.08
65
MSRP $70.00
$55.44
71
MSRP $3.00
$2.61
74
MSRP $3.90
$3.34
83
Washer Mercedes-Benz
Mercedes-Benz Description: DAMPER STRUT TO RUBBER MOUNTINGDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. SHOCK ABSORBER TO FRAMEDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. TO BUMPER AT TOPDiameter: 15mmInsi ...
MSRP $1.00
$0.87
MSRP $1.00
$0.87
89
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to front subframe. Shock absorber to frame. Lower control arm to steering knuckle.
92
Fastening Parts Mercedes-Benz
Mercedes-Benz Description: Damper strut mounting,front. Shock absorber mounting,rear. Shock absorber mounting,front.
No.
Part # / Description / Price
Price
17
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
71
MSRP $3.00
$2.61
74
MSRP $3.90
$3.34
83
Washer Mercedes-Benz
Mercedes-Benz Description: DAMPER STRUT TO RUBBER MOUNTINGDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. SHOCK ABSORBER TO FRAMEDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. TO BUMPER AT TOPDiameter: 15mmInsi ...
MSRP $1.00
$0.87
MSRP $1.00
$0.87
No.
Part # / Description / Price
Price
