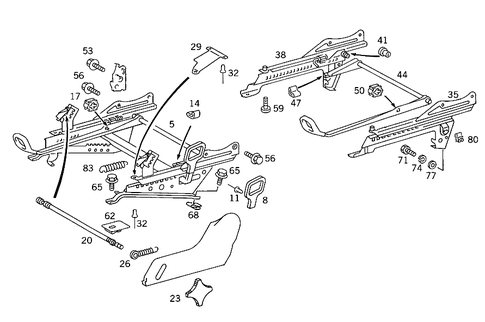

Seat Adjuster for 1988 Mercedes-Benz 300E
No.
Part # / Description / Price
Price
5
5
53
Screw
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Guide rail to front seat backrest frame. Bracket mounting. Bracket to seat cushion.
56
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Cross member to left front panel pillar.
MSRP $2.70
$2.32
MSRP $2.70
$2.32
59
Screw Mercedes-Benz
Mercedes-Benz Description: Guide rail to right front seat cushion m6 x 14. Adjuster to seat frame. Guide rail to seat framework. Height adjustment to front seat cushion. Bracket mounting m6 x 14.
65
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Front seat to cross member. Front seat to rear console. Armrest to backrest. Front seat mounting. Gearing to seat height adjustment. Seat adjustment to floor. Befestigung fahrersitz. Seat adjustment guide rail. Strut to central pillar,rear,and to rear pillar. Guide rail to front console.
MSRP $32.00
$25.08
MSRP $32.00
$25.08
68
Socket Nut Mercedes-Benz
Mercedes-Benz Description: Front seat to cross member. Rear seat cushion to floor. Front seat mounting. Bracket to rear wheelhouse. Befestigung fahrersitz. Seat adjustment guide rail. Strut to central pillar,rear.
71
Screw Mercedes-Benz
Mercedes-Benz Description: Pane wiper linkage to central part. Strut to main floor and to cross member. Intermediate layer and wiper linkage to central inside part. Strut to stiffening and to front cross member. Air duct to central inside part.
MSRP $2.00
$1.74
MSRP $2.00
$1.74
77
MSRP $0.90
$0.73
80
Nut Holder Mercedes-Benz
Mercedes-Benz Description: Bracket to left wheelhouse. Rear seat bench backrest to rear panel. Wheel well reinforcement, left. Mounting to body.
MSRP $17.00
$14.50
MSRP $17.00
$14.50
105
Seat Adjuster Mercedes-Benz
Mercedes-Benz Description: Electric,with programming;right for steering column adjustment.
105
105
Seat Adjuster Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
NOT FOR SAUDI-ARABIA
NOT FOR SAUDI-ARABIA
Description: Electric,with programming;left for steering column adjustment.
108
Seat Adjustment Mercedes-Benz
Mercedes-Benz Description: Height adjustment driver seat right electrically adjustable.
108
Seat Adjustment Mercedes-Benz
Mercedes-Benz Description: Height adjustment of electrically adjustable left front seat.
108
Seat Adjuster Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Height adjustment driver seat right electrically adjustable.
108
Seat Adjuster Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Height adjustment of electrically adjustable left front seat.
114
Guide Rail Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Right seat;left;for electric seat adjustment.
114
Guide Rail Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Left seat;left;for electric seat adjustment.
114
114
117
117
Guide Rail Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Left seat;right;for electric seat adjustment.
117
117
Guide Rail Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Right seat;right;for electric seat adjustment.
129
132
Nut Mercedes-Benz
Mercedes-Benz Description: M8-10. Wiper linkage to motor drive rod. To bearing m8. Bracket to wheelhouse. Horn to stiffening. Bracket to spring dome. Triple gearing to height adjustment.
135
Nut Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: To bolt. Triple gearing to height adjustment.
138
Screw Mercedes-Benz
Mercedes-Benz Description: Electric motor to guide rail. Guide rail to seat framework m5 x 10. Motor to seat height adjustment. Hinge to fabric retaining rail.
144
147
Screw Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Link. Triple gearing to height adjustment.
153
156
Guide Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Inside. Triple gearing to guide rail,outside.
162
Retaining Washer Mercedes-Benz
Mercedes-Benz Description: FLEXIBLE SHAFT TO ENGINE AND TO TRANSMISSION
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. SHAFT TO MOTOR
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. BACKREST TO SEAT FRAME
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm.
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. SHAFT TO MOTOR
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. BACKREST TO SEAT FRAME
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm.
MSRP $1.70
$1.45
MSRP $1.70
$1.45
168
Grommet Mercedes-Benz
Mercedes-Benz Description: At contact rail. Control unit to seat height adjustment. Contact plate. Contact rail and control unit.
No.
Part # / Description / Price
Price
83
Screw Mercedes-Benz
Mercedes-Benz Description: Armrest to backrest. Self-locking. Control unit to bracket. Bracket to console. M 6x12. Electric motor to window regulator. Guide rail to door.
83
Screw Mercedes-Benz
Mercedes-Benz Description: Electric motor to guide rail. Guide rail to seat framework m5 x 10. Motor to seat height adjustment. Hinge to fabric retaining rail.
110
146
Stop Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Fore-and-aft adjustment. Electric front seat adjustment.
No.
Part # / Description / Price
Price
86
Stop Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Seat height adjustment left front seat outside right front seat inside.
86
Stop Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Seat height adjustment left front seat inside right front seat outside.
