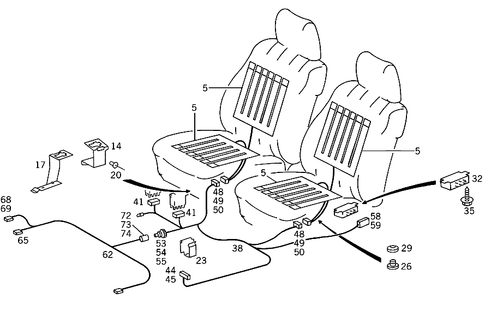

Seat Heating for 1988 Mercedes-Benz 300E
No.
Part # / Description / Price
Price
5
Heater Pad
Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT SPORTS SEATS
Description: Front seat backrest. Used with fabric trim.
5
Heater Pad Mercedes-Benz
Mercedes-Benz Description: Backrest and seat cushion, for use with mechanical seat adjuster. Front seat cushion;used with velours trim. Rear seat backrest & cushion. Used with fabric trim. Front seat backrest.
5
5
Heater Pad Mercedes-Benz
Mercedes-Benz Description: Backrest & seat cushion. Front seat backrest. Front seat cushion;used with leather trim.
5
Heater Pad Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT SPORTS SEATS
Description: Central front seat cushion. Used with fabric trim.
14
Holder Mercedes-Benz
Mercedes-Benz Notes: RIGHT FRONT SEAT WITH HEIGHT ADJUSTER
Description: Airbag plug to seat adjuster on the right. With height adjustment. Electric pad plug-connection.
17
Holder Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FRONT SEAT LESS HEIGHT ADJUSTMENT
FRONT SEAT LESS HEIGHT ADJUSTMENT
Description: Airbag plug to seat adjuster on the right. Less height adjustment. Electric pad plug-connection.
26
Tarpaulin Eyelet Mercedes-Benz
Mercedes-Benz Description: Electric cable. Autotelephone. Head restraint. Rear seat headrest,left.
29
Tarpaulin Eyelet Mercedes-Benz
Mercedes-Benz Description: Electric cable. Front seat mechanically adjustable. Autotelephone. Head restraint.
32
Control Unit Mercedes-Benz
Mercedes-Benz Description: Below rear seat. Seat heater control. Legroom. Seat heating.
41
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Mode indicator switch anti-theft alarm system. Seat heater switch.
44
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Outside temperature indicator. 5-pin. Feed-in. 5-pin. Multiway connector 5-polig. 5-pin. Plug connection,special equipment strip 5-fach. 5-pin. Sa plug socket. 5-pin.
45
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.32
MSRP $2.70
$2.32
49
Cap Mercedes-Benz
Mercedes-Benz Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
MSRP $5.00
$4.35
MSRP $5.00
$4.35
50
MSRP $3.70
$3.22
54
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
MSRP $2.70
$2.32
MSRP $2.70
$2.32
55
Plug Pin Mercedes-Benz
Mercedes-Benz Description: To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
58
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Seat heater feed-in. 21-pin
model 1: spt / jpt
model 2: 2.8
slots: 21. Rearview-mirror-memory/steeringcolumn-adjustment control unit 21-polig. 21-pin
model 1: spt / jpt
model 2: 2.8
slots: 21.
model 1: spt / jpt
model 2: 2.8
slots: 21. Rearview-mirror-memory/steeringcolumn-adjustment control unit 21-polig. 21-pin
model 1: spt / jpt
model 2: 2.8
slots: 21.
68
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
MSRP $8.75
$7.54
MSRP $8.75
$7.54
No.
Part # / Description / Price
Price
5
Heater Pad Mercedes-Benz
Mercedes-Benz Description: Front seat cushion. Cover striped longitudinally. Used with leather trim.
14
Holder Mercedes-Benz
Mercedes-Benz Description: Airbag plug to seat adjuster on the right. With height adjustment. Electric pad plug-connection.
38
38
38
54
Cap Mercedes-Benz
Mercedes-Benz Description: To 006 545 81 28,009 545 53 28. Electrical plug-in jumper for sliding roof motor to a 009 545 53 28.
