Frame & Components for 2016 Mercedes-Benz Sprinter 3500

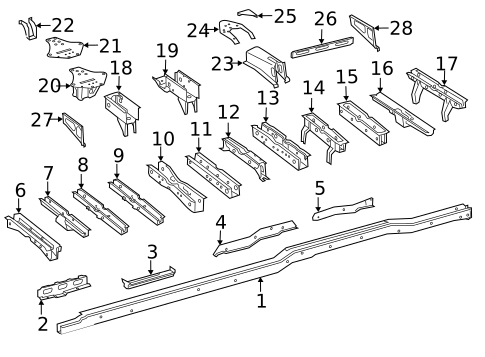

No.
Part # / Description / Price
Price
1
Frame Rail
Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 3500XD, 4500 170" WB. with extended.
MSRP $815.00
$620.10
MSRP $815.00
$620.10
1
Frame Rail Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 3500XD, 4500 170" WB. without extended. Frame rails & crossmembers, 3500, 170 wb.
1
Frame Rail Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 3500XD, 4500 170" WB. without extended. Frame rails & crossmembers, 3500, 170 wb.
5
5
7
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 2500, 170 wb, #2. 3500, 3500xd, 4500 144" wb. #3. 3500, 3500xd, 4500 144" wb. #6. 3500, 3500xd, 4500 170" wb. #2. Frame rails & crossmembers, #2, 170 wb. 1500, 2500, 144" wb. #2.
MSRP $220.00
$168.99
MSRP $220.00
$168.99
9
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 2500, 170 wb, #3. 3500, 170 wb, #4. 3500, 3500xd, 4500 170" wb. #6. Frame rails & crossmembers, #4, 170 wb. 2500, 170" wb. #1.
MSRP $148.00
$133.17
MSRP $148.00
$133.17
12
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 3500, 170 wb, #7. 3500, 3500xd, 4500 144" wb. #8. 3500, 3500xd, 4500 170" wb. #11. 3500, 3500xd, 4500 170" wb. #9.
MSRP $330.00
$254.13
MSRP $330.00
$254.13
14
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 3500, 170 wb, #9. 3500, 3500xd, 4500 144" wb. #9. Frame rails & crossmembers, #7, 170 wb, 3500.
15
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 3500, 170 wb, #10. 3500, 3500xd, 4500 144" wb. #10. Frame rails & crossmembers, #8, 144 wb, 3500.
MSRP $234.00
$181.10
MSRP $234.00
$181.10
16
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 2500, 170 wb, #5. 3500, 170 wb, #11. 3500, 3500xd, 4500 144" wb. #2. 6. Frame rails & crossmembers, #2, 144 wb cargo. 2500, 170" wb. #4. 3500, 3500xd, 4500 170" wb. #7.
MSRP $179.00
$138.03
MSRP $179.00
$138.03
17
17
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 3500, 3500XD, 4500 170" WB. spare wheel with extended.
MSRP $228.00
$175.44
MSRP $228.00
$175.44
18
Cross-Member Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 3500XD, 4500 170" WB. front spring. Brackets & reinforcements, 170 wb.
19
Cross-Member Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 3500XD, 4500 170" WB. c-pillar. Brackets & reinforcements. 2500, 170" WB. c-pillar.
19
Body C-Pillar Bracket Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 3500XD, 4500 170" WB. c-pillar. Brackets & reinforcements. 2500, 170" WB. c-pillar.
MSRP $195.00
$150.93
MSRP $195.00
$150.93
20
Reinforced Bracket Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 170 wb, rear spring. Brackets & reinforcements, 3500.
20
Leaf Spring Bracket Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 170 wb, rear spring. Brackets & reinforcements, 3500.
22
Front Support Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 144 wb. 3500, 170 wb. Brackets & reinforcements.
23
Carrier Gusset Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 170 wb. 3500, 3500XD, 4500 144" WB. rear spring. Brackets & reinforcements, 3500.
25
Carrier Stiffener Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 170 wb. 3500, 3500xd, 4500 144" wb. Brackets & reinforcements, 3500.
26
Center Rail Mercedes-Benz
Mercedes-Benz Description: 3500, 3500XD, 4500 170" WB. with extended only. Brackets & reinforcements, 3500.
27
Front Brace Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 170 wb, without extended. Brackets & reinforcements. 2500, 170" wb.
28
Rear Brace Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 170 wb, with extended. Brackets & reinforcements. 2500, 170" wb.
MSRP $58.00
$45.54
MSRP $58.00
$45.54

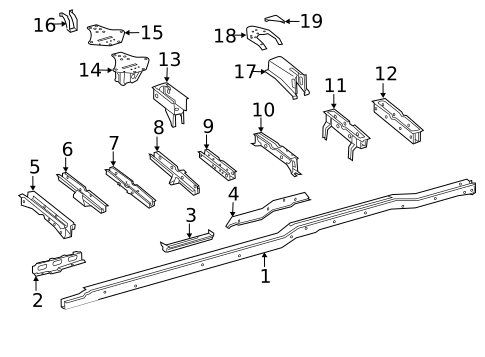

No.
Part # / Description / Price
Price
2
Frame Rail Bracket Mercedes-Benz
Mercedes-Benz Description: 2500, 144 wb, tank attachment. 3500, 144 wb, tank attachment.
3
Frame Rail Bracket Mercedes-Benz
Mercedes-Benz Description: 2500, 170 wb, hand brake. 3500, 3500XD, 4500 144" WB. hand brake. 1500, 2500, 144" WB. hand brake.
5
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 2500, 144 wb, #1. 3500, 144 wb, #1. 3500, 3500xd, 4500 170" wb. #4.
8
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 2500, 144 wb, #4. 3500, 144 wb, #4. 3500, 3500xd, 4500 170" wb. #3. Frame rails & crossmembers, #5, 144 wb.
9
Cross-Member Mercedes-Benz
Mercedes-Benz Description: 3500, 144 wb, #5. 3500, 3500xd, 4500 144" wb. #7. 3500, 3500xd, 4500 170" wb. #5. Frame rails & crossmembers, #6, 3500.
13
Cross-Member Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 3500XD, 4500 144" WB. front spring. Brackets & reinforcements, 144 wb.
16
Front Support Mercedes-Benz
Mercedes-Benz Positions: Left
Description: 3500, 144 wb. 3500, 170 wb. Brackets & reinforcements.
17
Carrier Gusset Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 170 wb. 3500, 3500XD, 4500 144" WB. rear spring. Brackets & reinforcements, 3500.
19
Carrier Stiffener Mercedes-Benz
Mercedes-Benz Positions: Right
Description: 3500, 170 wb. 3500, 3500xd, 4500 144" wb. Brackets & reinforcements, 3500.
