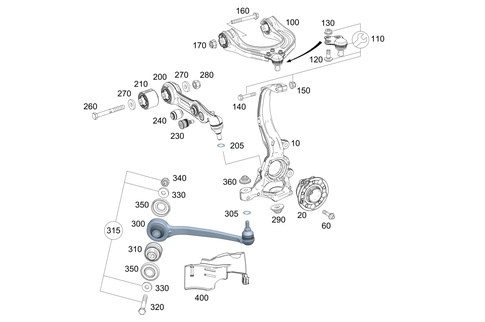

Steering Knuckle and Control Arm for 2016 Mercedes-Benz SL65 AMG
No.
Part # / Description / Price
Price
10
MSRP $330.00
$254.13
10
MSRP $380.00
$292.83
20
MSRP $450.00
$348.30
60
Hexalobular Head Screw
Mercedes-Benz
Mercedes-Benz Description: BEARING AT LEFT WHEEL CARRIERDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Left rear wheel bearing to wheel carrierDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel hub to ...
MSRP $13.50
$11.46
MSRP $13.50
$11.46
100
MSRP $900.00
$675.00
100
MSRP $795.00
$605.79
110
MSRP $112.00
$86.43
120
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: ACTUATOR TO REAR AXLE M8X22
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BALL JOINT TO TRANSVERSE CONTROL ARM AT TOP, LEFT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. FASTENING STRUT M8X22
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BALL JOINT TO TRANSVERSE CONTROL ARM AT TOP, LEFT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. FASTENING STRUT M8X22
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
140
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Upper transverse control arm to left steering knuckle. M10X60-10.9
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Shock absorber to rear axle. Mounting, lower shock absorber. Cross member, top, at steering knuckle, left. Mount, reinforcement to tunnel. Cross strut mount. Engine mount to left and right engine carrier. Mass damper and engine mount to left engine carrier.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Shock absorber to rear axle. Mounting, lower shock absorber. Cross member, top, at steering knuckle, left. Mount, reinforcement to tunnel. Cross strut mount. Engine mount to left and right engine carrier. Mass damper and engine mount to left engine carrier.
MSRP $17.00
$14.50
MSRP $17.00
$14.50
160
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M10X90
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Starter position without starter. Transmission to engine. Starter mount. Starter fastening. Transmission case to crankcase. Starting motor to crankcase. Heat shield mounting. Motor to gearing.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Starter position without starter. Transmission to engine. Starter mount. Starter fastening. Transmission case to crankcase. Starting motor to crankcase. Heat shield mounting. Motor to gearing.
200
Spring Link Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Left.
MSRP $302.00
$233.49
MSRP $302.00
$233.49
200
MSRP $610.00
$464.82
200
MSRP $498.00
$384.42
200
MSRP $432.00
$334.11
205
MSRP $4.00
$3.48
210
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Notes: NOT FOR AMG VEHICLES
Description: Left, adjustable bearing. Left, only for camber/caster adjustment.
MSRP $142.00
$109.65
MSRP $142.00
$109.65
230
Ball Joint Mercedes-Benz
Mercedes-Benz Description: To transverse control arm. Left. Spring link to torsion bar.
MSRP $35.00
$27.72
MSRP $35.00
$27.72
240
Supporting Joint Mercedes-Benz
Mercedes-Benz Description: Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
MSRP $72.00
$56.76
MSRP $72.00
$56.76
260
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left. M14X1,5X130
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right. Trans. Con. Arm left. Bottom on frame.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right. Trans. Con. Arm left. Bottom on frame.
MSRP $33.50
$26.40
MSRP $33.50
$26.40
260
Screw Mercedes-Benz
Mercedes-Benz Description: Spring link to frame-type int. M14x1.5. Thrust arm to support. Spring control arm to integral carrier, left. Spring control arm at frame. Torque strut to frame-type int.
MSRP $19.50
$16.68
MSRP $19.50
$16.68
280
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
MSRP $7.00
$5.95
MSRP $7.00
$5.95
280
MSRP $8.00
$6.96
290
Nut With Clamping Piece Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle, left. M16. Transverse control arm at left wheel carrier.
MSRP $9.75
$8.34
MSRP $9.75
$8.34
300
MSRP $155.00
$119.97
300
MSRP $210.00
$161.25
300
MSRP $170.00
$131.58
310
Bearing Mercedes-Benz
Mercedes-Benz Description: Tension rod left. Spring link to frame-type int. Supp. Spring link to integral carrier, left. Strut. Left and right.
MSRP $29.50
$23.10
MSRP $29.50
$23.10
315
MSRP $16.50
$14.36
320
Fit Screw Mercedes-Benz
Mercedes-Benz Description: For adjusting work only. M14x1.5. Lh, only for caster adjustment.
MSRP $14.00
$12.18
MSRP $14.00
$12.18
350
Elastomeric Boot Mercedes-Benz
Mercedes-Benz Description: Left and right at strut rod bearing. Hydromount cover, left.
MSRP $12.00
$10.15
MSRP $12.00
$10.15
