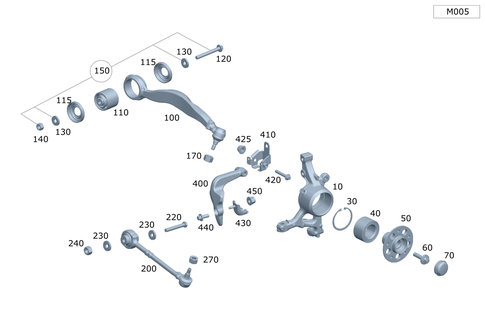

4MATIC® Steering Knuckle and Transverse Control Arm for 2011 Mercedes-Benz E550
No.
Part # / Description / Price
Price
10
MSRP $780.00
$594.36
30
Retaining Ring
Mercedes-Benz
Mercedes-Benz Description: FRONT WHEEL BEARING
Inside diameter: 92mm
Material thickness: 3mm. Left and right
Inside diameter: 92mm
Material thickness: 3mm.
Inside diameter: 92mm
Material thickness: 3mm. Left and right
Inside diameter: 92mm
Material thickness: 3mm.
MSRP $9.00
$7.83
MSRP $9.00
$7.83
40
MSRP $104.00
$79.98
60
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M16X60
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Propeller shaft to flange. Propeller shaft to front wheel hub, left. Drive shaft to flange. Drive shaft to front wheel hub. Left axle shaft.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Propeller shaft to flange. Propeller shaft to front wheel hub, left. Drive shaft to flange. Drive shaft to front wheel hub. Left axle shaft.
MSRP $24.50
$21.03
MSRP $24.50
$21.03
70
Locking Cap Mercedes-Benz
Mercedes-Benz Description: Front wheel hub, outer. Wheel hub, left and right. To left steering knuckle, front axle.
MSRP $5.75
$4.93
MSRP $5.75
$4.93
100
MSRP $258.00
$198.66
110
MSRP $39.50
$31.02
115
Sealing Bellows Mercedes-Benz
Mercedes-Benz Description: Tension rod left. Left and right at strut rod bearing.
MSRP $34.50
$27.06
MSRP $34.50
$27.06
120
Setting Screw, Control Arm Mercedes-Benz
Mercedes-Benz Description: For adjusting work only m14x1,5. Left, for adjusting only. Only for adjustment operations, left.
MSRP $21.00
$18.13
MSRP $21.00
$18.13
130
Spacer Ring Mercedes-Benz
Mercedes-Benz Description: For adjusting work only. Only for adjustment operations, left. Left, for adjusting only.
MSRP $5.00
$4.35
MSRP $5.00
$4.35
140
Hex Nut W Flange + Piece Mercedes-Benz
Mercedes-Benz Description: Only for adjustment operations. M14x1.5. For adjusting work only. Mounting, spring link. Left, for adjusting only. Torque strut to frame-type integral support, left and right.
MSRP $4.40
$3.77
MSRP $4.40
$3.77
140
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Strut rod to integral carrier, left. M14X1,5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to left steering knuckle. Link rod to torsion bar. Torque strut to integral carrier, left. Cross strut to steering knuckle, left. Torsion bar linkage to torsion bar, left and right. Torque strut at steering knuckle, left.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to left steering knuckle. Link rod to torsion bar. Torque strut to integral carrier, left. Cross strut to steering knuckle, left. Torsion bar linkage to torsion bar, left and right. Torque strut at steering knuckle, left.
150
Setting Screw, Control Arm Mercedes-Benz
Mercedes-Benz Description: For adjusting work only. Only for adjustment operations. Left, for adjusting only.
MSRP $36.00
$28.38
MSRP $36.00
$28.38
200
MSRP $334.00
$258.00
220
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M14 X100-10.9
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Cross strut to left integral carrier.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Cross strut to left integral carrier.
MSRP $8.75
$7.54
MSRP $8.75
$7.54
220
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: M14X1,5X100-10.9
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. On frame-type int. Transverse control arm at bottom to integral carrier. Suspension strut to transverse control arm. Transverse control arm, rear, to frame-type integral support. Cross strut to integral carrier. Camber struts to wheel carrier. Trailing arm to rear axle, lower left and right.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. On frame-type int. Transverse control arm at bottom to integral carrier. Suspension strut to transverse control arm. Transverse control arm, rear, to frame-type integral support. Cross strut to integral carrier. Camber struts to wheel carrier. Trailing arm to rear axle, lower left and right.
MSRP $12.50
$10.59
MSRP $12.50
$10.59
400
MSRP $216.00
$166.41
420
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Steering gear to integral carrierDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel bearing to left steering knuckle, upper M12X1.5X70Diameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: ...
MSRP $10.50
$8.85
MSRP $10.50
$8.85
