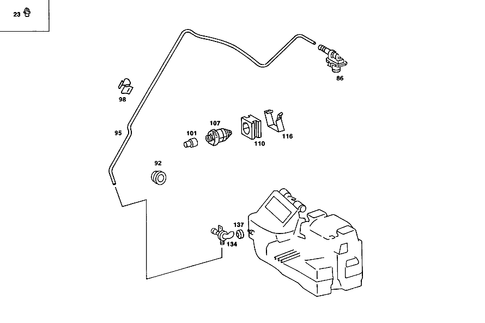

Operating Unit for 1993 Mercedes-Benz 300SE
No.
Part # / Description / Price
Price
5
Control System
Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT AUTOMATIC AIR CONDITIONER
Description: Heater housing.
8
Knob Mercedes-Benz
Mercedes-Benz Description: Heater case operating unit. Defroster/legroom nozzle operating unit.
17
Nut Mercedes-Benz
Mercedes-Benz Description: Light switch to instrument panel. Light rotary switch. Operating unit. Central covering to heater case. Air-conditioner temperature/vacuum switch to covering in case.
MSRP $3.70
$3.19
MSRP $3.70
$3.19
32
Knob Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Blower switch. Operating unit lever to legroom flap lever at central air duct.
MSRP $40.00
$31.68
MSRP $40.00
$31.68
35
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Description: At operating unit bracket, used for automatic heating,right.
35
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Description: At operating unit bracket, used for automatic heating,left.
44
Operating Unit Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic air conditioner.
44
Operating Unit Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic air conditioner.
47
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: To kammerer. Temperature selector. To 124 830 21 85. To 124 830 22 85.
53
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),"off".
56
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor off.
59
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor on.
62
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),overall ventilation.
65
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),defrosting.
68
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower maximum output control.
71
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic blower control.
74
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower minimum output control.
MSRP $20.00
$17.40
MSRP $20.00
$17.40
89
Fitting Mercedes-Benz
Mercedes-Benz Description: Breathing,to temperature sensor &thermostat,thru right front panel pillar.
89
Fitting Mercedes-Benz
Mercedes-Benz Description: Breathing,to temperature sensor &thermostat,thru right front panel pillar.
95
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between roof rail mounted temperature feeler & air-blast nozzle. From temperature sensor on roof rail to air-blast nozzle hose 1670 mm.
98
Clamp Mercedes-Benz
Mercedes-Benz Description: Line mounting. To tank drainage. Tank filler neck drain pipe. Vacuum line. Hose. Wiring harness fastening starter/ alternator.
107
Blower Mercedes-Benz
Mercedes-Benz Description: Temperature sensor ventilation. Blower to air duct.
MSRP $82.00
$64.68
MSRP $82.00
$64.68
113
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: At blower;temperature sensor ventilation. Blower to air duct.
122
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Between air-blast nozzle and breather fitting.
128
Hose Mercedes-Benz
Mercedes-Benz Description: Air guide hose to roof rail and to airblast nozzle. Between air-blast nozzle and breather fitting.
128
Hose Mercedes-Benz
Mercedes-Benz Description: Air guide hose to roof rail and to airblast nozzle. Between roof rail mounted temperature feeler & air-blast nozzle.
137
MSRP $3.90
$3.34
140
Rivet Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Air-blast nozzle to heater case.
152
MSRP $4.90
$4.21
No.
Part # / Description / Price
Price
47
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Notes: NOT FOR CANADA
Description: Temperature selector. To 124 830 31 85.
50
Temperature Controller Mercedes-Benz
Mercedes-Benz Notes: NOT FOR CANADA
Description: To bosch. To 124 830 23 85. To 124 830 24 85.
92
Window Mercedes-Benz
Mercedes-Benz Description: Paint run-off hole in main floor 23 mm. 22,5 mm. To rear end center assembly. 22,5 mm. Fuel line 23 mm. 22,5 mm. Front panel pillar. 22,5 mm. Left mounting console. 22,5 MM.
MSRP $2.70
$2.32
MSRP $2.70
$2.32
