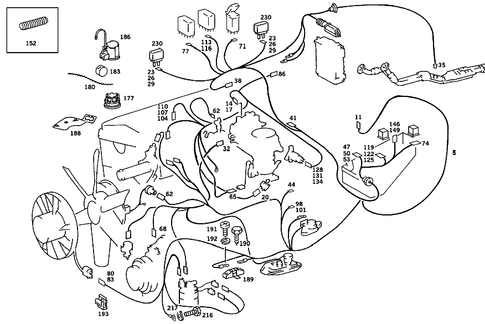

Engine Cable Harness for 1989 Mercedes-Benz 190D
No.
Part # / Description / Price
Price
8
Wiring Harness
Mercedes-Benz
Mercedes-Benz Notes: IN CASE OF VEHICLES EQUIPPED WITH ANTI-LOCK BRAKING SYSTEM,DELIVER ADDITINALLY: 1X 015 545 29 28; 1X 003 545 10 26,1X 000 540 08 69
11
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
20
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Thrust cutoff micro-switch;two-pole. 3-pin.
MSRP $7.50
$6.38
MSRP $7.50
$6.38
29
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.32
MSRP $2.70
$2.32
41
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Valve strip;8-pole. Fuse box "l". Engine cable harness central electrical system, 8-pole u.
50
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.47
MSRP $2.90
$2.47
56
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Oil level indication. 1-pin. Ntc feeler. 1-pin. Temperature sensor. 1-pin.
65
Electric Coupling Mercedes-Benz
Mercedes-Benz Description: Belt locking retractor feed-in. Speed signal. 1-pin. Cockpit cable harness. 1-pin. From electrical compartment plugconnection to indicating instruments. 1-pin. Plug connection kl 87 ug. 1-pin. Temperature sensor refrigerant indicator. 1-pin. Temperature switch,16 degs.. 1-pin. Used without automatic air conditioner. 1-pin.
MSRP $3.20
$2.76
MSRP $3.20
$2.76
71
MSRP $6.25
$5.37
74
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
MSRP $8.75
$7.54
MSRP $8.75
$7.54
77
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Fuel pump relay,12-pole. 12-pin. Compressor control unit. 12-pole. 12-pin. Kick-down cut-off relay. 12-pin. Control unit, day driving light. 12-pin. Idling adjustment control unit. 12-pin. Idling shut-off valve;12-pole. 12-pin.
83
MSRP $3.00
$2.61
89
95
MSRP $3.70
$3.22
101
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
MSRP $2.70
$2.32
MSRP $2.70
$2.32
107
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: To 008 545 08 28. Cool box a39/1. To 008 545 09 28. Blower. Brake fluid control,brake lining wear indication.
107
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
113
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.90
MSRP $3.40
$2.90
125
Plug Pin Mercedes-Benz
Mercedes-Benz Description: To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
152
Corrugated Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Electric cable thru fire wall 530 mm.
188
Screw Mercedes-Benz
Mercedes-Benz Description: Cd changer to bracket. Mounting at console. Control module mounting.
MSRP $1.20
$1.02
MSRP $1.20
$1.02
191
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.16
MSRP $1.40
$1.16
197
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Engine hood upper catch to engine hood. Flap to hinge m 6x10.
MSRP $2.90
$2.47
MSRP $2.90
$2.47
225
Level Sensor Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'86
Description: Adjustment to altitude.
MSRP $206.00
$158.67
MSRP $206.00
$158.67
231
Tapping Screw Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'86
Description: DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
MSRP $2.50
$2.18
MSRP $2.50
$2.18
235
Trimmer Plug Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: (trimmer plug) ara 4700 ohm. Egr 4700 ohm.
235
235
Adjustment Connector Mercedes-Benz
Mercedes-Benz Description: (trimmer plug) ezl. (trimmer plug) ara 220 ohm. Egr 220 ohm.
No.
Part # / Description / Price
Price
N/A
Engine Wiring Harness Mercedes-Benz
Mercedes-Benz Description: (addit. Cable harness) for air conditioner;only with subsequent installation.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
131
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Warm-up sender unit,cold start valve, air-flow sensor plate contact. 0.5-1.5mm2. TO 116 540 01 81,007 545 75 28. 0.5-1.5mm2. TO 116 540 01 81/007 545 35 28. 0.5-1.5mm2. S12. 0.5-1.5mm2. TO 002 545 64 26. 002 545 82 26. 0.5-1.5mm2. Adjustment to altitude to 007 545 7528, 116 540 0181. 0.5-1.5mm2.
MSRP $3.50
$3.05
MSRP $3.50
$3.05
182
MSRP $1.40
$1.16
197
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Engine hood upper catch to engine hood. Flap to hinge m 6x10.
MSRP $2.90
$2.47
MSRP $2.90
$2.47
200
Nut Mercedes-Benz
Mercedes-Benz Description: Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
No.
Part # / Description / Price
Price
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: IN CASE OF VEHICLES EQUIPPED WITH ANTI-LOCK BRAKING SYSTEM,DELIVER ADDITINALLY: 1X 015 545 29 28; 1X 003 545 10 26,1X 000 540 08 69
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 307009
023,024 F 184466
122,126 F 221871
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 307009
023,024 F 184466
122,126 F 221871
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 307009
023,024 F 184466
122,126 F 221871
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 307009
023,024 F 184466
122,126 F 221871
No.
Part # / Description / Price
Price
N/A
Sieve Insert Mercedes-Benz
Mercedes-Benz Description: Solenoid valve. To valve. Exhaustgas recirculation. Electric change-over valve.
MSRP $4.50
$3.92
MSRP $4.50
$3.92
146
Contact Spring Mercedes-Benz
Mercedes-Benz Description: WINDSHIELD WASHER NOZZLE HEATINGLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: AgELA: -Model 1: PLModel 2: 6.3. DOOR CONTACTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: AgELA: -Model 1: PLModel 2: 6.3. TO 124 540 21 81Le ...
150
Spring Retaining Pin Mercedes-Benz
Mercedes-Benz Description: 1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
MSRP $3.90
$3.34
MSRP $3.90
$3.34
No.
Part # / Description / Price
Price
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR'88
FROM MODEL YEAR'88
Description: Engine cable harness.
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO EMD OF MODEL YEAR'87
UP TO EMD OF MODEL YEAR'87
Description: Engine cable harness.
No.
Part # / Description / Price
Price
8
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Engine cable harness used with air conditioner.
138
Receptacle Mercedes-Benz
Mercedes-Benz Description: 756. 1.0-2.5 mm2 ff6.3. Radio. 1.0-2.5 mm2 ff6.3. Engine hood. 1.0-2.5 mm2 ff6.3. Parking brake switch. 1.0-2.5 mm2 ff6.3.
141
Insulating Sleeve Mercedes-Benz
Mercedes-Benz Description: To 000 546 83 40. To 000 546 79 40. To 000 546 583 40. Charge control. Electric cable to pressure switch. Low pressure switch.
No.
Part # / Description / Price
Price
8
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO EMD OF MODEL YEAR'87
UP TO EMD OF MODEL YEAR'87
Description: Engine cable harness.
